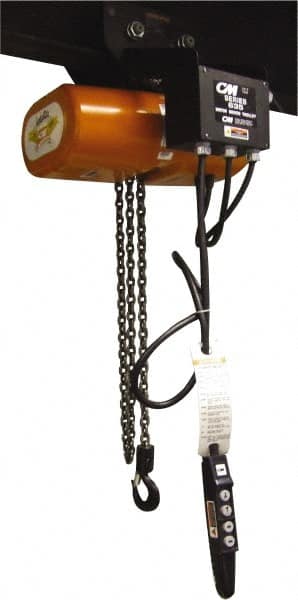

CM - 1/8 Ton Capacity, 60 FPM Lift Speed, 230/460 Volt, Hoist with Motorized Trolley - 0.5 Output hp, 20' Max Lift, 16-13/16" Min Headroom, 1 Chain
Item #: 41846684
Brand: CM
Model #: 3114/2992/9316
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hoist w/Motorized Trolley |
| Load Capacity (Ton) | 1/8 |
| Load Capacity (Lb.) | 250 |
| Lifting Speed in Ft/Min | 60 |
| Maximum Lift Distance (Feet) | 20 |
| Lift Speed Type | Single |
| Trolley Speed Type | Single |
| Traversing Speed in Ft/Min | 30 |
| Minimum Headroom (Inch) | 16-13/16 |
| Minimum Headroom (Decimal Inch) | 16.8125 |
| Number of Chains | 1 |
| Lift Output Horse Power | 0.500 |
| Lift Amperage at 208/230 VAC | 2.2 |
| Lift Amperage at 460 Vac | 1.30 |
| Lift Motor Phase | Three |
| Traversing Motor Phase | 3 |
| Traversing Output Horse Power | 0.25 |
| Traversing Amperage at 208/230 VAC | 1.30 |
| Traversing Amperage at 460 VAC | 0.65 |
| Flange Width Range (Decimal Inch) | 3.375-5.625 |
| Controller | Pendant Control |
| Lifting Material | Chain |
