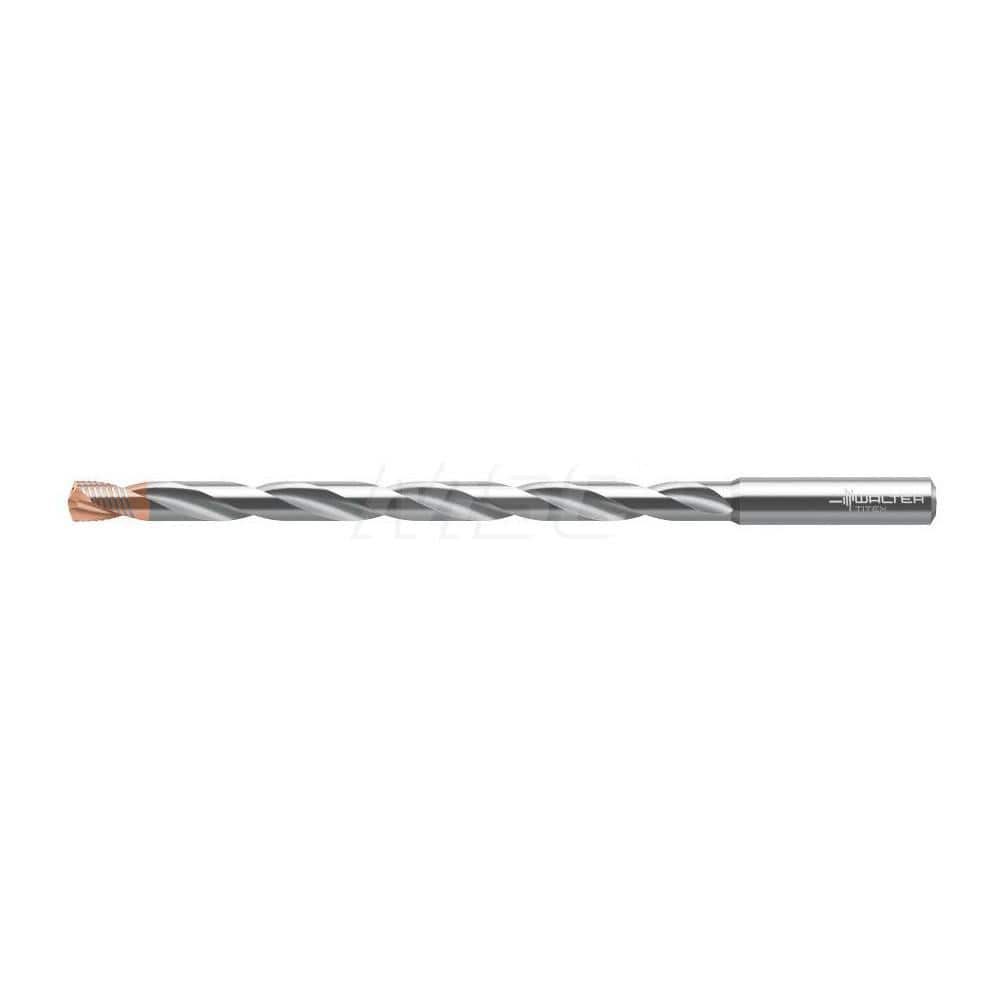

Extra Length Drill Bit: 0.4134″ Dia, 140 °, Solid Carbide TiAlN Finish, 6.2205″ Flute Length, 8.11″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series DC170
Item #: 41789470
Brand: Walter-Titex
Model #: 6745538
Product Specifications
| Drill Bit Size (mm) | 10.50 |
| Overall Length (mm) | 206.00 |
| Flute Length (mm) | 158.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | DC170 |
| Cutting Direction | Right Hand |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Drill Bit Diameter Tolerance | m7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Standards | ISO; DIN 6535 HA; ANSI |
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Drill Point Length (mm) | 1.91 |
| Drill Point Length (Decimal Inch) | 0.0750 |
| Overall Length (Decimal Inch) | 8.1100 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Shank Diameter (mm) | 12.00 |
| Shank Length (Decimal Inch) | 1.7720 |
| Shank Length (mm) | 45.00 |
| Flute Length (Decimal Inch) | 6.2205 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 5.5120 |
| Maximum Drilling Depth (mm) | 140.00 |
