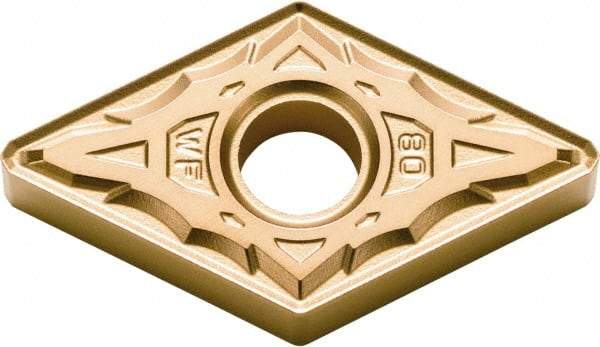

Kyocera - DNMX442 WF Grade PV710 Cermet Turning Insert - Megacoat Nano Finish, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 41606815
Brand: Kyocera
Model #: 8849249
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMX |
| Insert Size | 442 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | PV710 |
| Coating | Megacoat Nano |
| Chip Breaker | WF |
| ISO Number | DNMX150608WF |
| Rake | Negative |
| Relief Angle | 0 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Shape | Diamond |
