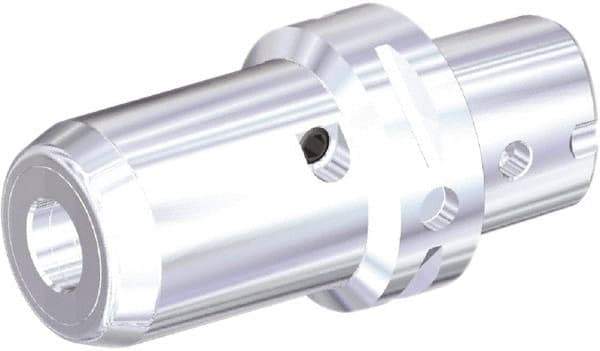

Kennametal - PSC63 Modular Connection, 20mm Hole Diam, Hydraulic Tool Holder/Chuck - 50.3mm Nose Diam, 90mm Projection, 41mm Clamp Depth, Through Coolant
Item #: 41456070
Brand: Kennametal
Model #: 6048239
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | PSC63 |
| Hole Diameter (Decimal Inch) | 0.7880 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 1.9800 |
| Nose Diameter (mm) | 50.30 |
| Projection (Decimal Inch) | 3.5430 |
| Projection (mm) | 90.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 41.00 |
| Clamping Depth (Decimal Inch) | 1.6140 |
| Overall Length (mm) | 128.00 |
| Overall Length (Decimal Inch) | 5.0390 |
