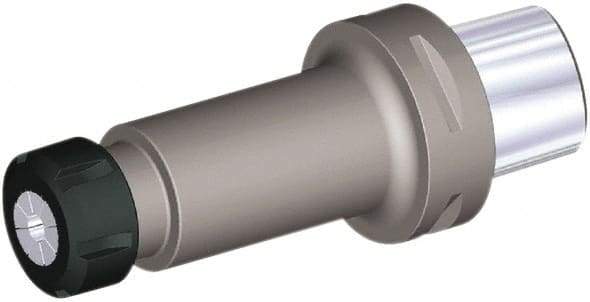

Kennametal - 1/64" to 1/2" Capacity, 60mm Projection, Taper Shank, ER20 Collet Chuck - 90mm OAL, 50mm Shank Diam
Item #: 41455718
Brand: Kennametal
Model #: 6320153
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Taper Shank |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | PSC50 |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0156 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Shank Length (mm) | 30.00 |
| Shank Length (Decimal Inch) | 1.1811 |
| PSC Code | 5136 |
