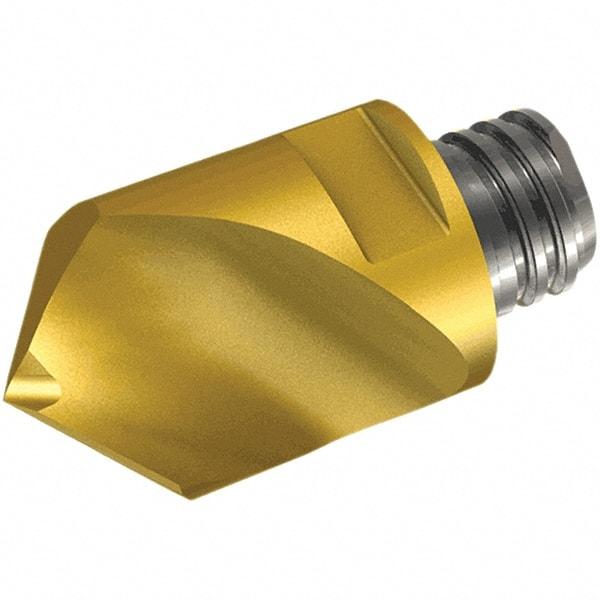

Iscar - MM ECD Grade IC908 Carbide Spotting Drill Milling Tip Insert - TiAlN Finish, 2 Flutes, 0.236" Cutting Diam, 11mm Extension
Item #: 41440363
Brand: Iscar
Model #: 5607709
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster; SolidMill |
| Milling Tip Style | MM ECD |
| Milling Tip Type | Spotting Drill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.2360 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Spotting Drill |
| Coating Process | PVD |
| Extension From Holder (mm) | 11.00 |
| Extension From Holder (Decimal Inch) | 0.4330 |
| Thread Size | T04 |
| Included Angle | 90 |
| Style | MM ECD-06X90-2T04 |
| Manufacturers Catalog Number | MM ECD-06X90-2T04 |
