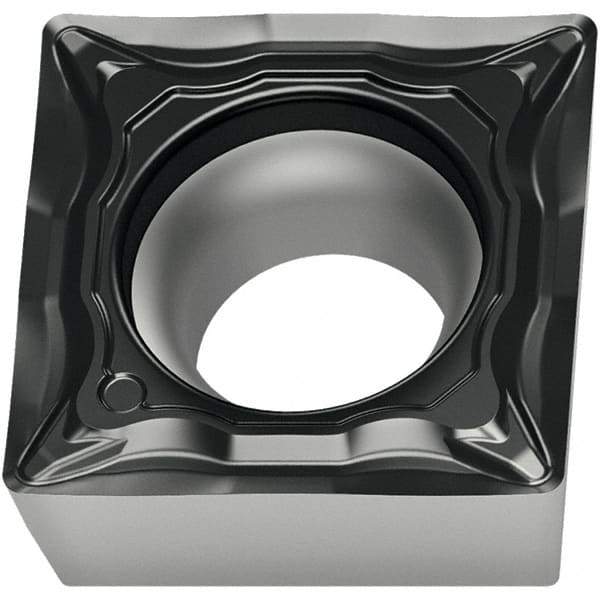

Walter - SCMT FM4 Grade WMP20S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 90° Square, 6.35mm Inscr Circle, 2.53mm Thick, 0.4mm Corner Radius
Item #: 41381153
Brand: Walter
Model #: 7021198
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Length (mm) | 6.35 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1000 |
| Thickness (mm) | 2.53 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WMP20S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | FM4 |
| Insert Length (Decimal Inch) | 0.2500 |
| OverallLength (mm) | 6.35 |
| Overall Length (Decimal Inch) | 0.2500 |
| Insert Length (mm) | 6.3500 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | SCMT060204-FM4 WMP20S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WMP20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 7021198 |
| Primary Workpiece Material | M, P |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SCMT-FM4 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Cutting Width (mm) | 6.35 |
| Shape | Square |
