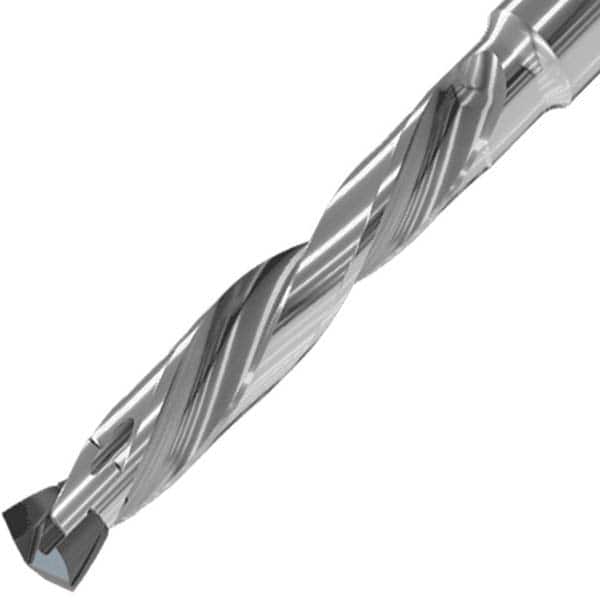

Replaceable Tip Drill: 5 to 5.4 mm Drill Dia, 24.9 mm Max Depth, 6 mm Straight-Cylindrical Shank Uses ICP Inserts, Seat Size 5, 2.8071″ OAL, Through Coolant
Item #: 41310897
Brand: Iscar
Model #: 3310521
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.1969 |
| Minimum Drill Diameter (mm) | 5.00 |
| Maximum Drill Diameter (mm) | 5.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.2126 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 24.90 |
| Maximum Drill Depth (Decimal Inch) | 0.9803 |
| Shank Type | Straight-Cylindrical |
| Insert Style | ICP |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Insert Seat Size | 5 |
| Shank Diameter (mm) | 6.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.5000 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | ICP |
| Overall Length (mm) | 71.30 |
| Overall Length (Decimal Inch) | 2.8071 |
| Series | SumoCham |
| Toolholder Style | DCN |
| Body Length (Decimal Inch) | 1.4291 |
| Body Length | 36.30 |
| Shank Length (Decimal Inch) | 1.3780 |
| Shank Length (mm) | 35.00 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Tip Length (mm) | 0.73 |
| Tip Length (Decimal Inch) | 0.0287 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
