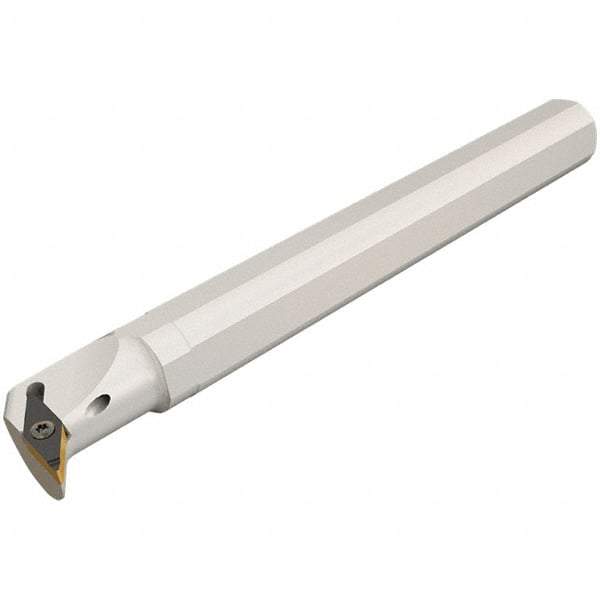

Iscar - 31.5mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, A-SVUN Indexable Boring Bar - 35mm Max Bore Depth, VN.. 12T3.. Insert, Screw Holding Method
Item #: 41162462
Brand: Iscar
Model #: 3601170
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVUN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 31.50 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 35.00 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Compatibility | VN.. 12T3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 18.50 |
| Insert Inscribed Circle (mm) | 7.15 |
| Rake Angle | -14 |
| Complete Insert Compatibility | VNGG 12T302-NF; VNGG 12T304-NF; VNMG 12T302-NFL; VNMG 12T304-NF; VNMG 12T308-NF; VNMM 12T304-PP; VNMM 12T308-PP |
| Toolholder Material | Steel |
