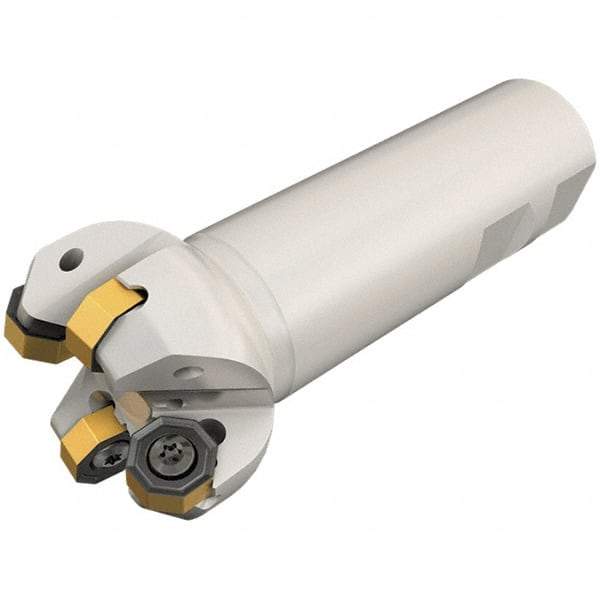

Iscar - 45° Lead Angle, 1.909" Max Cut Diam, 1-1/2" Min Cut Diam, 0.138" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, O/RXMT, ON.U, S845 SN.U Insert Style, 4-1/2" Overall Length, Through Coolant, Straight Shank
Item #: 41157322
Brand: Iscar
Model #: 3105311
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.9090 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Style | O/RXMT; ON.U; S845 SN.U |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 4 |
| Toolholder Style | SOE45 |
| Weldon Flat | No |
