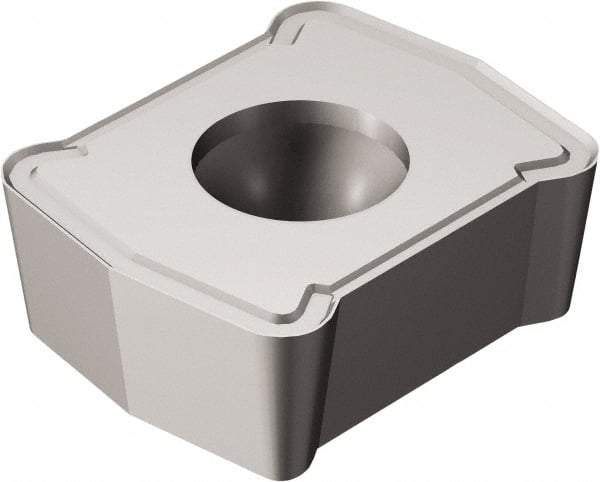

Sandvik Coromant - LCMX2 53 Grade 1120 Carbide Indexable Drill Insert - TiCN Finish, Rectangle, 3/16" Inscribed Circle
Item #: 41061623
Brand: Sandvik Coromant
Model #: 5735084
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | LCMX |
| Insert Size | 2 |
| Material | Carbide |
| Manufacturer's Grade | 1120 |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Thickness (mm) | 2.38 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Rectangle |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 7 |
| Included Angle | 7 |
| Coating | TiCN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | 53 |
