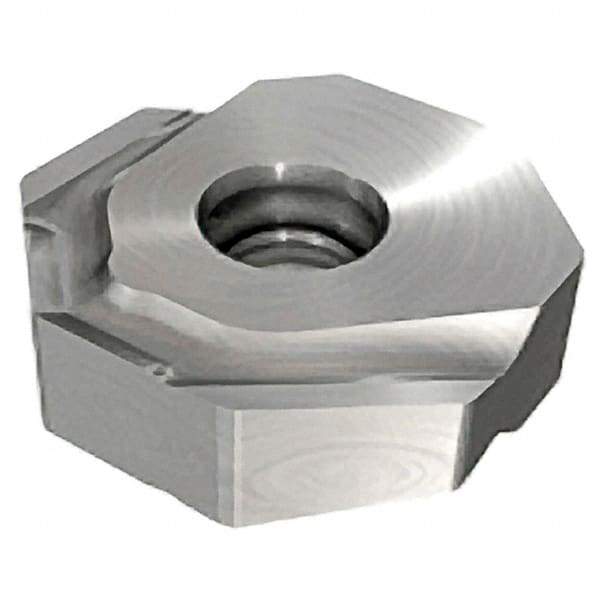

Iscar - ONHU0806 Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.2362" Thick, 0.803" Inscribed Circle, 0.4mm Corner Radius
Item #: 40788598
Brand: Iscar
Model #: 5605375
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONHU |
| Insert Size | 0806 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Inscribed Circle (Decimal Inch) | 0.8030 |
| Thickness (Decimal Inch) | 0.2362 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| ISO Number | ONHU 0806AN-R-W |
