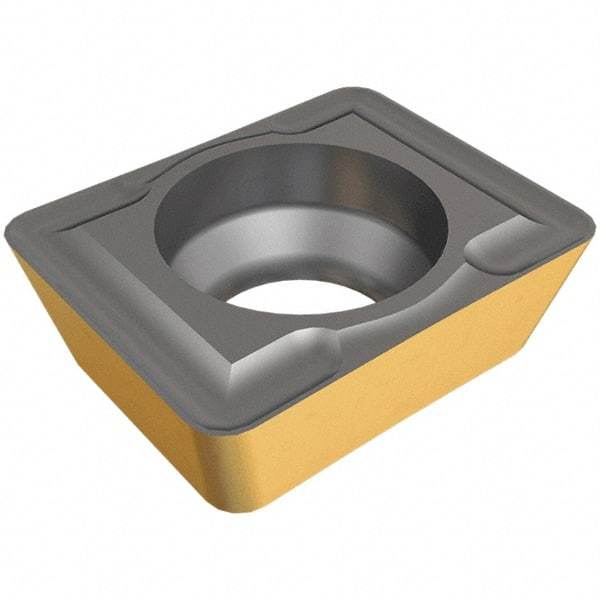

Iscar - AOMT040204 DT Grade IC1008 Carbide Indexable Drill Insert - TiAlN/TiN Finish, Parallelogram
Item #: 40728222
Brand: Iscar
Model #: 5507144
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | AOMT |
| Insert Size | 040204 |
| Material | Carbide |
| Manufacturer's Grade | IC1008 |
| Thickness (mm) | 1.60 |
| Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Parallelogram |
| Width (Decimal Inch) | 0.1575 |
| Width (mm) | 4.00 |
| Length (mm) | 5.00 |
| Relief Angle | 31 |
| Included Angle | 85 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Chipbreaker | DT |
