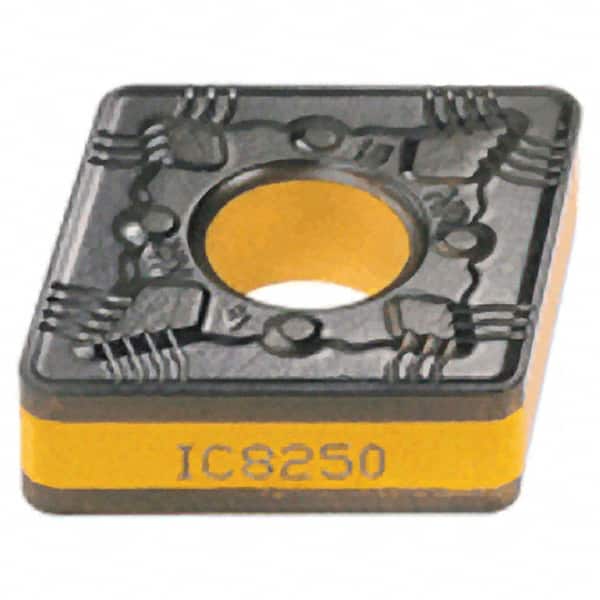

Iscar - CNMG866 NR Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 1" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 40684797
Brand: Iscar
Model #: 5507934
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 866 |
| Material | Carbide |
| Length (mm) | 25.79 |
| Length (Decimal Inch) | 1.0154 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | NR |
| Relief Angle | 0 |
| Coating Process | PVD |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
