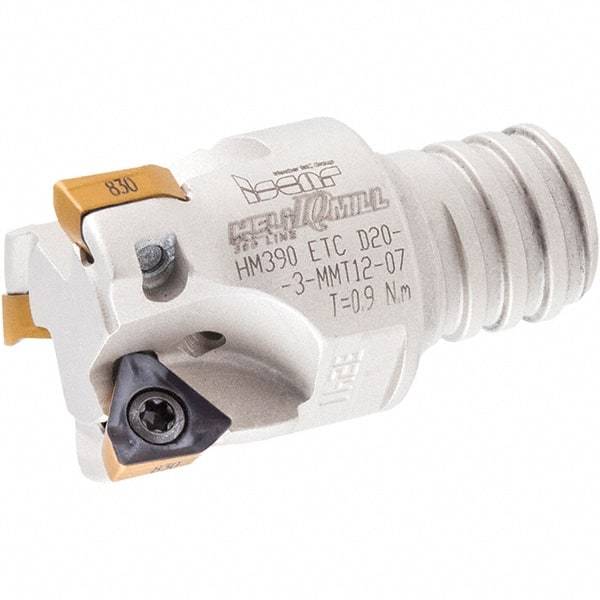

Iscar - 3/4" Cut Diam, 0.2" Max Depth of Cut, 1.27" OAL, Indexable Square Shoulder Helical End Mill - HM390 TCKT 0703PCTR Inserts, T12 Modular Connection, 90° Lead Angle, Series Multimaster
Item #: 40506883
Brand: Iscar
Model #: 3107028
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Modular Connection |
| Modular Connection Size | T12 |
| Overall Length/Projection (Decimal Inch) | 1.2700 |
| Lead Angle | 90 |
| Series | Multimaster |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETC-MM |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 0.7500 |
| Insert Compatibility | HM390 TCKT 0703PCTR |
| Toolholder Material | Carbide |
