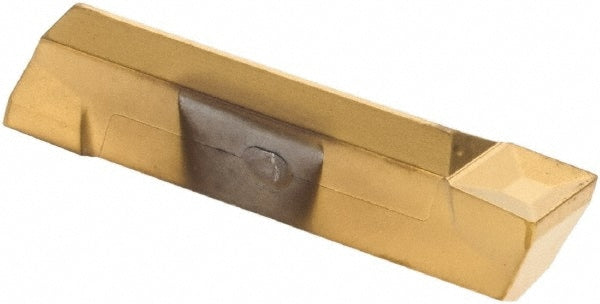

Multi-Directional Turning Insert: S224.0400.D2 TN35, TN35, Solid Carbide
Item #: 92105014
Brand: HORN
Model #: S2240400D2 TN35
Product Specifications
| Insert Style | S224 |
| Insert Size Code | 0400 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Insert Hand | Left Hand; Right Hand |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TN35 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Insert Holding Method | Screw |
| Lead Angle | 5 |
| Multi-use Tool | No |
| Series | S224 |
| Overall Length (Decimal Inch) | 0.8660 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| UNSPSC Code | 23242105 |
| Chip Breaker | D |
| Country of Origin | Luxembourg |
