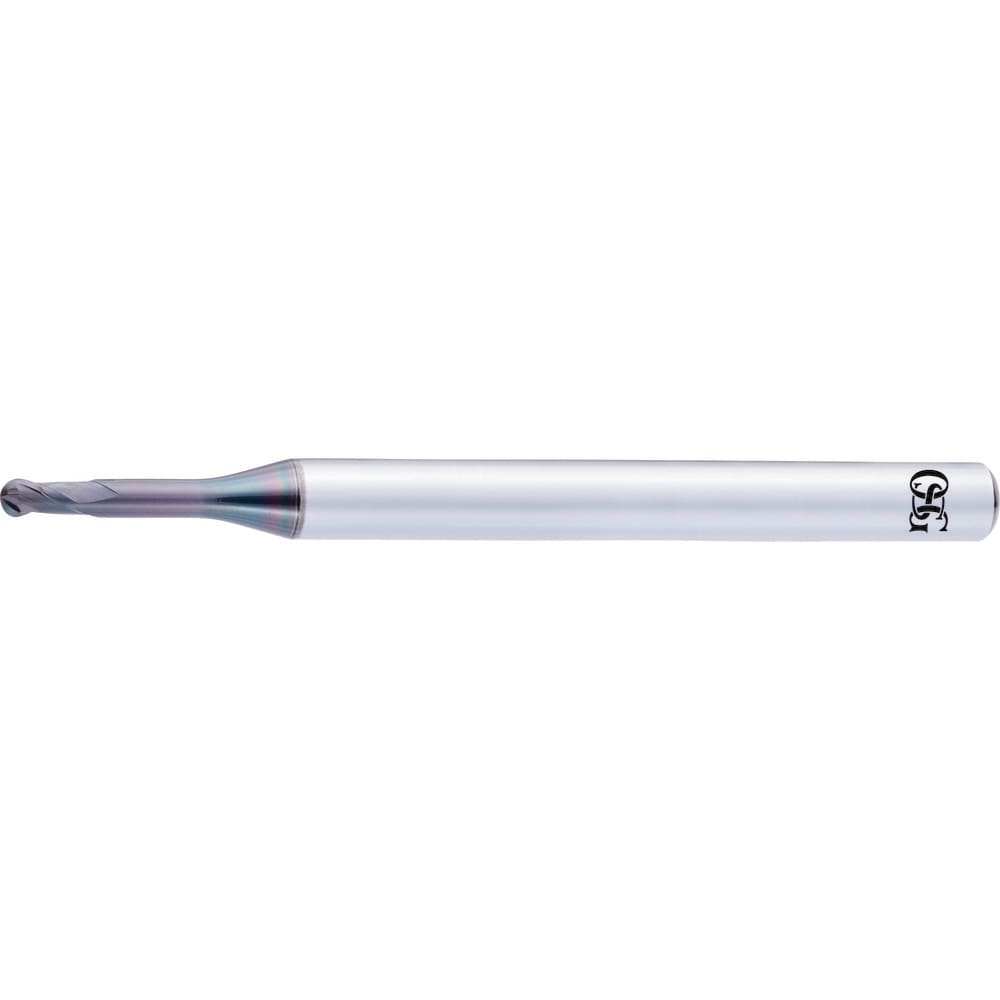

Ball End Mill: 0.80 mm Dia, 0.60 mm LOC, 2 Flute, Solid Carbide
Item #: 92120583
Brand: OSG
Model #: 3056400
Product Specifications
| Mill Diameter (mm) | 0.80 |
| Number Of Flutes | 2 |
| End Mill Material | Carbide |
| Length of Cut (mm) | 0.6000 |
| Coating/Finish | DLC-IGUSS |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (mm) | 45.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Type | Stub |
| Helix Style | Low |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 4.0000 |
| Neck Diameter (mm) | 0.750 |
| Nose Radius (mm) | 0.4 |
| Neck Length (mm) | 10 |
| Reach Length (mm) | 4.00 |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Primary Workpiece Material | Aluminum Casting; Aluminum Alloys |
| Primary Workpiece Material Code | N |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 8990 |
| Flute Type | Ball |
| UNSPSC Code | 27112803 |
| Additional Information | Type 1 |
| Centercutting | Yes |
| Single Or Double End | Single End |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| System Of Measurement | Metric |
| Country of Origin | Japan |
