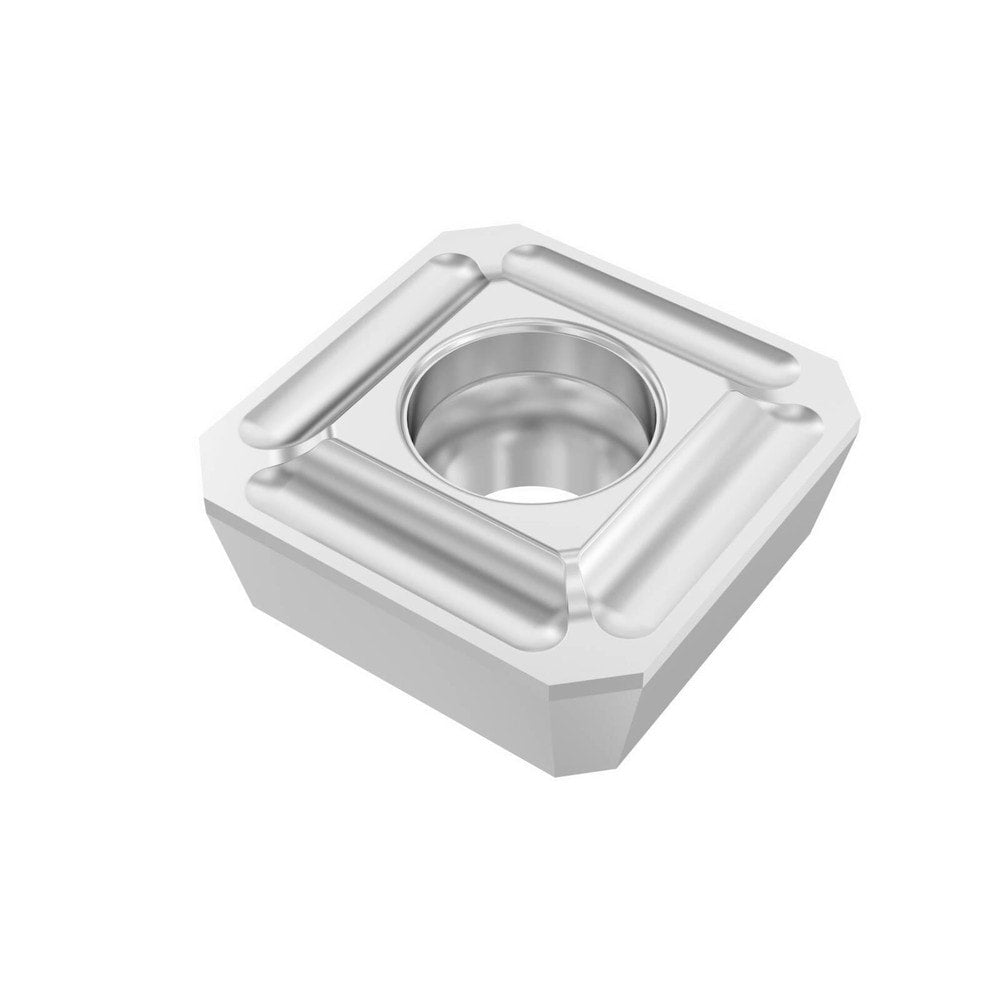

Indexable Drill Inserts; Insert Style: SPMX; Insert Material: Carbide; Manufacturer Grade: MP3501; Thickness (Inch): 1/8; Inscribed Circle (Inch): 3/8; Inscribed Circle (Decimal Inch): 0.3750
Item #: 86020856
Brand: Seco
Model #: 10198840
Product Specifications
| Insert Style | SPMX |
| Insert Material | Carbide |
| Manufacturer Grade | MP3501 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Chipbreaker | 75 |
| Series | SPMX |
| Coating Process | CVD |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | SPMX0903AP-75 |
| Iso Code | SPMX0903AP-75 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | SPMX0903AP-75,MP3501 |
| Insert Size | 0903 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Length (Decimal Inch - 4 Decimals) | 0.3750 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Coating/Finish | TiCN; Chrome; Al2O3 |
| Insert Size Code | 09 |
| Hole Diameter | 0.1378 |
| Insert Hand | Neutral |
| UNSPSC Code | 23242105 |
| Country of Origin | Sweden |
