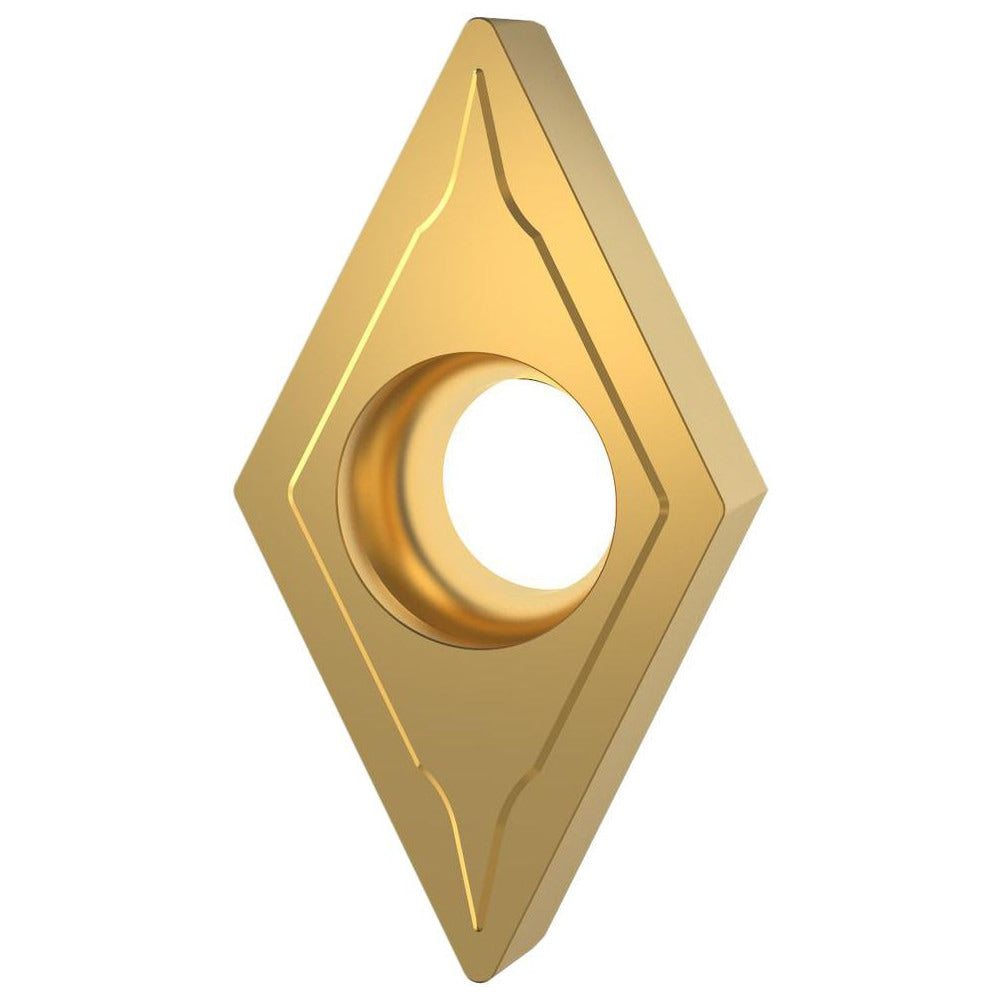

Turning Insert: DCMT2151MPS KTP25S, Carbide
Item #: 94324902
Brand: Kennametal
Model #: 7161010
Product Specifications
| ANSI Insert Code | DCMT2151 |
| ISO Insert Code | DCMT070204 |
| Relief Angle | 7.000 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.00 |
| Manufacturer Grade | KTP25S |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Series | DCMT |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 55° |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1420 |
| Insert Holding Method | Screw-On |
| Width (Inch) | 3/32 |
| Clearance Code | C |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3052 |
| Iso Code | DCMT070204MPS |
| Manufacturers Catalog Number | DCMT2151MPS KTP25S |
| Chip Breaker | MPS |
| ANSI Size Code | 2151 |
| ISO Size Code | 070204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2151 |
| Country of Origin | Japan |
