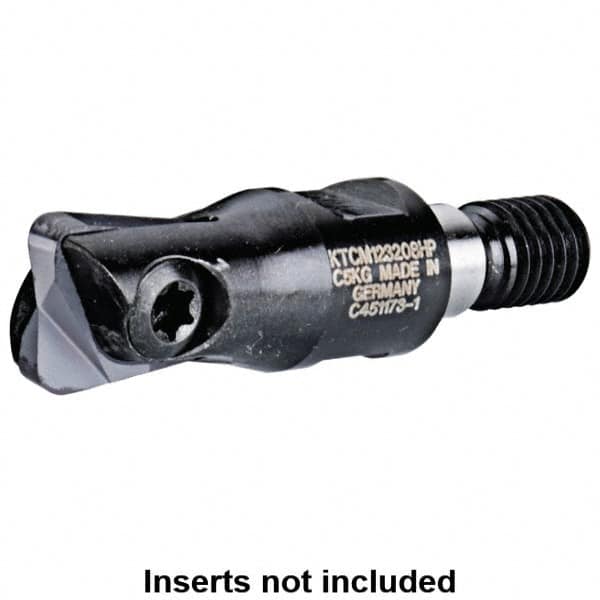

Kennametal - 16mm Cut Diam, 4mm Max Depth of Cut, 37mm OAL, Indexable Ball Nose End Mill - 37mm Head Length, M08 Modular Connection, KDMT Toolholder, KDM 16.. Insert
Item #: 40272627
Brand: Kennametal
Model #: 1918666
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M08 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDM 16.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 37.00 |
| Overall Length (Decimal Inch) | 1.4567 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 2 |
| Head Length (mm) | 37.00 |
| Head Length (Decimal Inch) | 1.4567 |
| Maximum RPM | 40000 |
