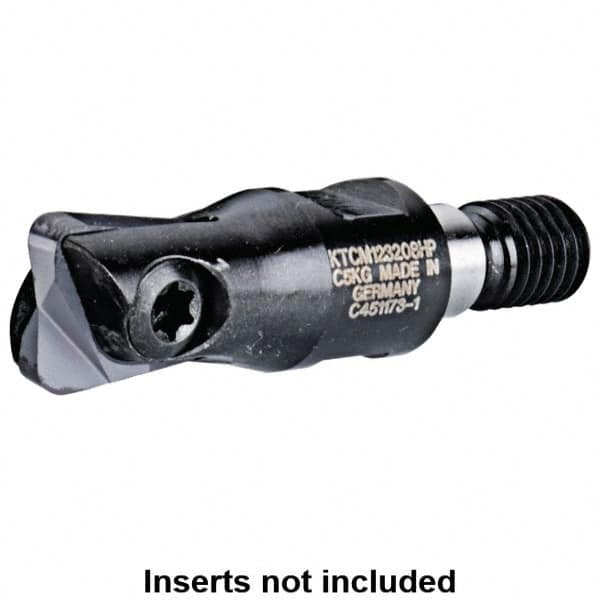

Kennametal - 12mm Cut Diam, 3mm Max Depth of Cut, 30mm OAL, Indexable Ball Nose End Mill - 30mm Head Length, M08 Modular Connection, KDMT Toolholder, KDM 12.. Insert
Item #: 40272601
Brand: Kennametal
Model #: 1918665
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M08 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDM 12.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 2 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Maximum RPM | 40000 |
