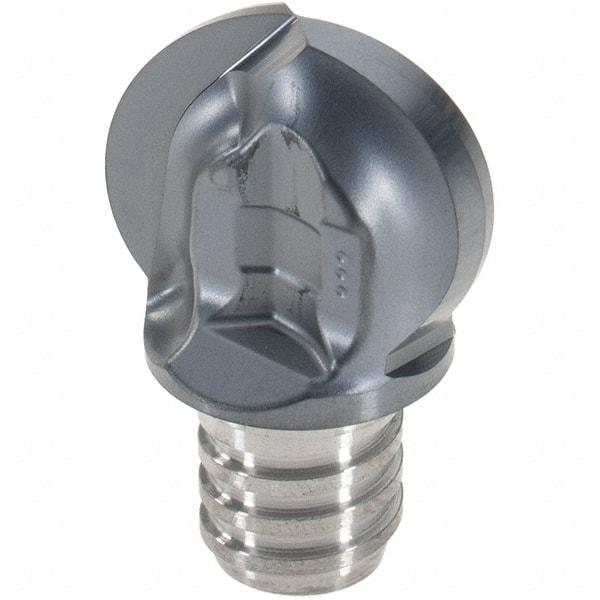

Iscar - MM HBR Grade IC908 Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 2 Flutes, 3/4" Cutting Diam, 0.71" Extension
Item #: 40234734
Brand: Iscar
Model #: 5621796
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HBR |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Ball Nose |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.7100 |
| Thread Size | T10 |
