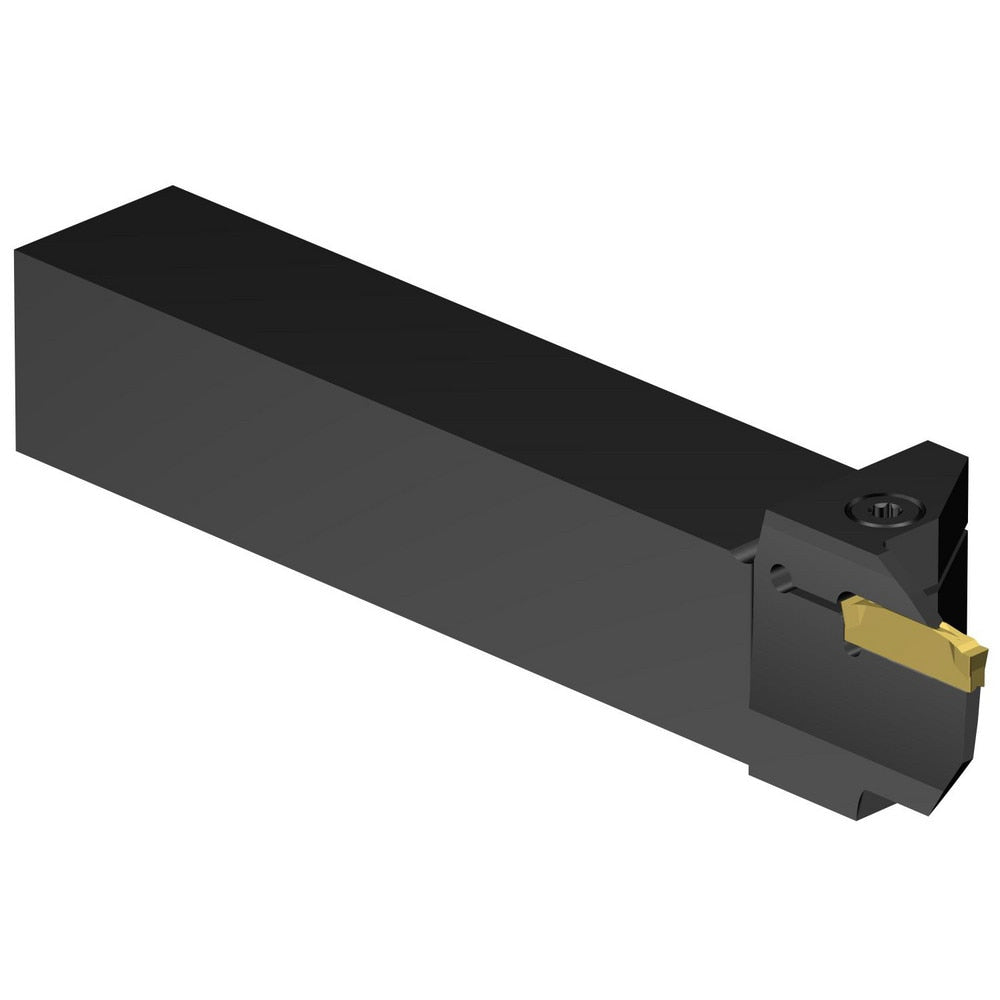

Indexable Grooving Toolholder: C2A-RSA16-LFG15B-130DB, External, Left Hand, Neutral & Right Hand, 0.1181" Max Groove Width
Item #: 05872890
Brand: Sandvik Coromant
Model #: 8424888
Product Specifications
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 3 |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Maximum Depth of Cut (mm) | 14.99 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | C2A-RSA..LF..B..DB |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | G2 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (mm) | 25.40 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | CoroCut 2 |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Minimum Overhang (Decimal Inch) | 1.3927 |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 1.0390 |
| Center to Cutting Edge (mm) | 26.39 |
| Head Height (Decimal Inch) | 1 |
| Head Height (mm) | 25.400 |
| Head Length (Decimal Inch) | 2.3927 |
| Head Length (mm) | 60.77 |
| UNSPSC Code | 27112809 |
| Mount Type | Clamp |
| Manufacturers Catalog Number | C2A-RSA16-LFG15B-130DB |
| Toolholder Material | Steel |
| Insert Hand | Neutral; Left Hand; Right Hand |
| Complete Insert Compatibility | C2I-G2-0300- |
| Coolant Through | No |
