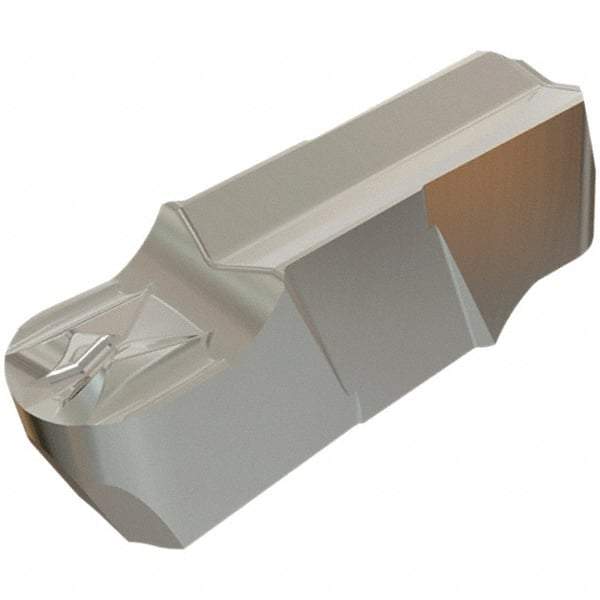

Iscar - 400E200GIFI Grade IC808, 4mm Cutting Width Carbide Grooving Insert - 14mm Max Depth of Cut, Neutral, 2mm Corner Radius, TiAlN Finish
Item #: 40181653
Brand: Iscar
Model #: 6404270
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIFI |
| Insert Size | 400E200 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Milling; Profiling; Turning |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6181 |
| Series | Cut Grip |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1575 |
