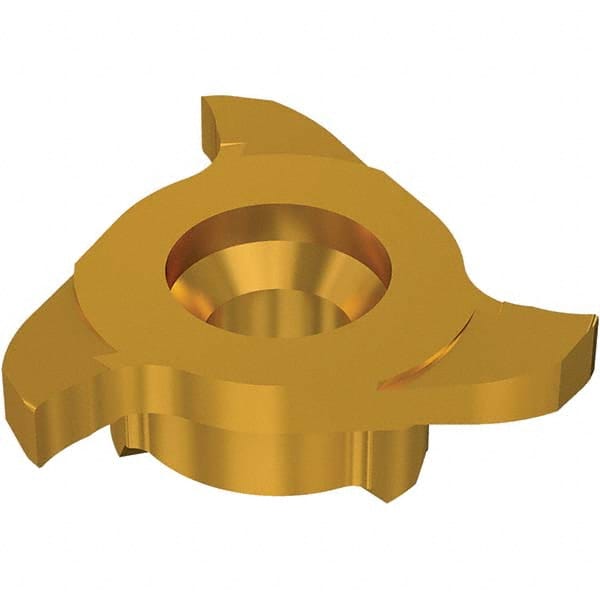

Seco - Milling Tip Inserts Series: 335.14 Milling Tip Style: R335.14
Item #: 18993493
Brand: Seco
Model #: 03308056
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Milling Tip Inserts; Series: 335.14 ; Milling Tip Style: R335.14 ; Milling Tip Type: Groove Milling ; Material: Carbide ; Cutting Diameter (mm): 21.7 ; Manufacturer's Grade: F32M
| Series | 335.14 |
| Milling Tip Style | R335.14 |
| Milling Tip Type | Groove Milling |
| Material | Carbide |
| Cutting Diameter (mm) | 21.7 |
| Manufacturer's Grade | F32M |
| Depth of Cut (mm) | 4.50 |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Corner Radius (mm) | 0.20 |
| Coating Process | PVD |
| Chipbreaker | M03 |
| Cutting Width (mm) | 5.00 |
| Extension From Holder (mm) | 5.70 |
| Lead Angle | 90 |
| Included Angle | 90 |
| Helix Angle | 0 |
| Manufacturers Catalog Number | R335.14-217500.12Z3-M03 |
