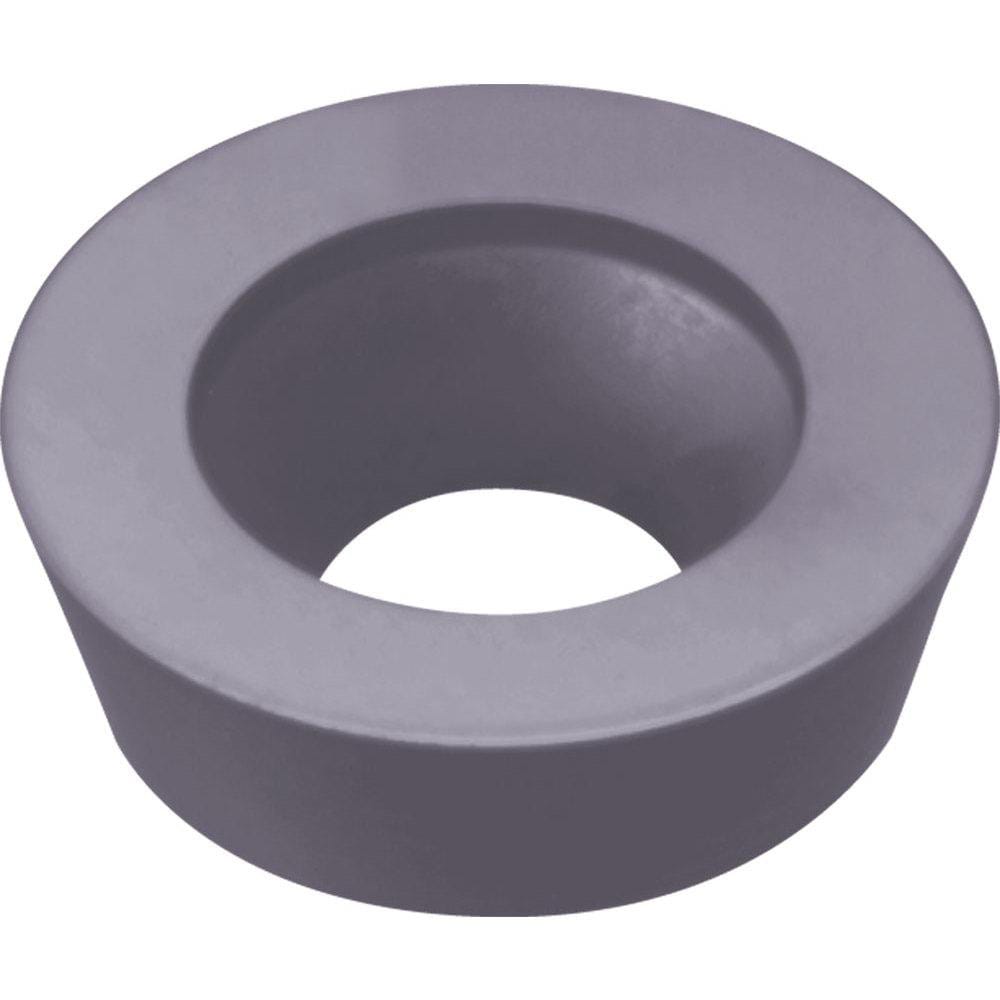

Milling Insert: RDHX0702M0T PR1835, Carbide
Item #: 87551255
Brand: Kyocera
Model #: TLU00173
Product Specifications
| Insert Style | RDHX |
| Insert Size | 0702 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Manufacturer Grade | PR1835 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0941 |
| Thickness (mm) | 2.3900 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 15.000 |
| Inscribed Circle (Decimal Inch) | 0.2756 |
| Inscribed Circle (mm) | 7.00 |
| Insert Hand | Neutral |
| Series | General Purpose Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Primary Workpiece Material | Austenitic Stainless Steel; Titanium Alloy; Precipitation Hardened Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Mold Steel; Martensitic Stainless Steel; Alloy Steel; Carbon Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | RDHX0702M0TPR1835 |
| Iso Code | RDHX0702M0T |
| Cutting Edge Style | Double Chamfered |
| Manufacturers Catalog Number | RDHX0702M0TPR1835 |
| Chip Breaker | M0T |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.2756 |
| Width (mm - 2 Decimals) | 7.00 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
