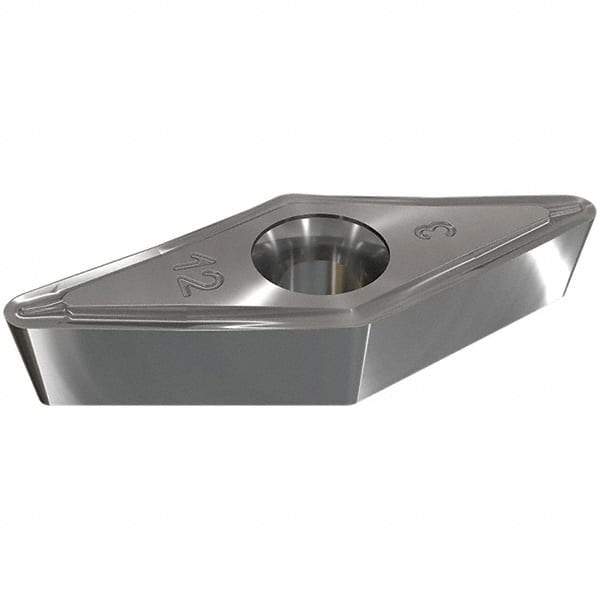

Iscar - VCMT330 SM Grade IC6025 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 35° Diamond, 9.52mm Inscr Circle, 4.76mm Thick, 0.2mm Corner Radius
Item #: 39840921
Brand: Iscar
Model #: 5566979
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCMT |
| Insert Size | 330 |
| Material | Carbide |
| Length (mm) | 16.60 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1870 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC6025 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | SM |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | VCMT 330-SM |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5566979 |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | None |
| Included Angle | 35 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Multi Use Application | Turning |
| Shape | Diamond |
