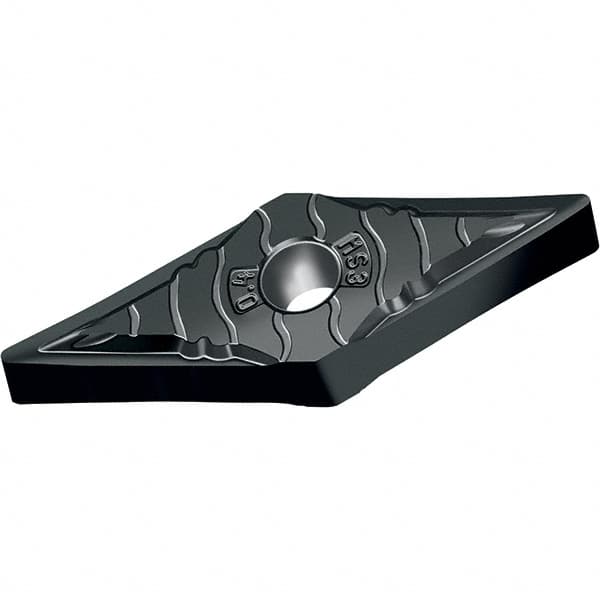

Walter - VNGG MS3 Grade WSM01 Turning Insert - TiAlN+Al2O3+(ZrN) Finish, 35° Rhombic, 9.53mm Inscr Circle, 4.76mm Thick, 0.1mm Corner Radius
Item #: 39804992
Brand: Walter
Model #: 7021462
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | VNGG |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.1 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | WSM01 |
| Coating | TiAlN+Al2O3+(ZrN) |
| Chip Breaker | MS3 |
| Insert Length (Decimal Inch) | 0.6540 |
| OverallLength (mm) | 16.61 |
| Overall Length (Decimal Inch) | 0.6540 |
| Insert Length (mm) | 16.6063 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNGG160401-MS3 WSM01 |
| Relief Angle | 0 |
| Proprietary Coating Designation | WSM01 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7021462 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VNGG-MS3 |
| Maximum Depth of Cut (mm) | 16.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.6540 |
| Cutting Width (mm) | 16.61 |
| Shape | Rhombic 35 |
