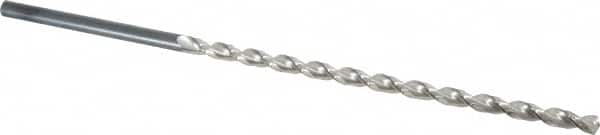

Guhring - 15/64" 130° 2-Flute High Speed Steel Extra Length Drill Bit
Item #: 85774156
Brand: Guhring
Model #: 9005020059500
Features and Benefits
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 15/64 |
| Drill Bit Size (Decimal Inch) | 0.2344 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Overall Length (Decimal Inch) | 8.0710 |
| Through Coolant | NonCoolant Through |
| Shank Diameter (Inch) | 15/64 |
| Flute Length (Inch) | 5-1/2 |
| Flute Length (Decimal Inch) | 5.5120 |
| Cutting Direction | Right Hand |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Type | Straight |
| Specification Designation | DIN |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.018 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | 502 |
