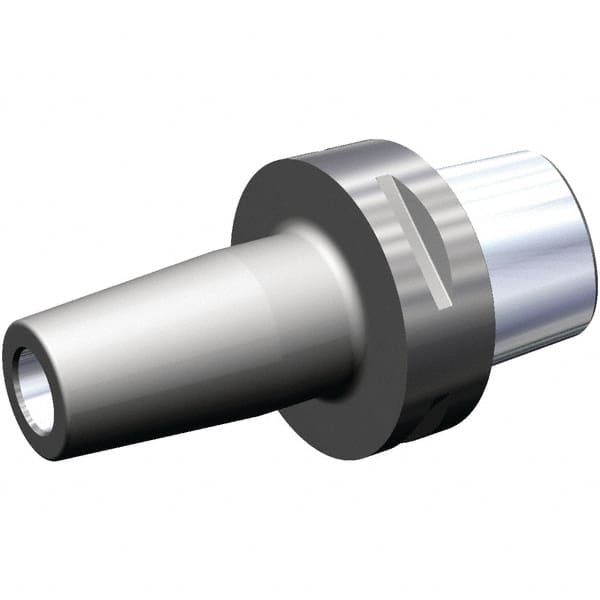

Kennametal - 63mm Shank Diam, 8mm Hole Diam, PSC63 Taper Shank Shrink Fit Tool Holder & Adapter - 80mm Projection, 21mm Nose Diam, 26mm Clamping Depth, Through Coolant
Item #: 39719869
Brand: Kennametal
Model #: 6303114
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Shank Diameter (Decimal Inch) | 2.4803 |
| Taper Size | PSC63 |
| Shank Diameter (mm) | 63.00 |
| Hole Diameter (Decimal Inch) | 0.3150 |
| Hole Diameter (mm) | 8.00 |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1496 |
| Nose Diameter (mm) | 21.00 |
| Nose Diameter (Decimal Inch) | 0.8268 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 26.00 |
| Clamping Depth (Decimal Inch) | 1.0236 |
| Overall Length (mm) | 118.00 |
| Overall Length (Decimal Inch) | 4.6457 |
