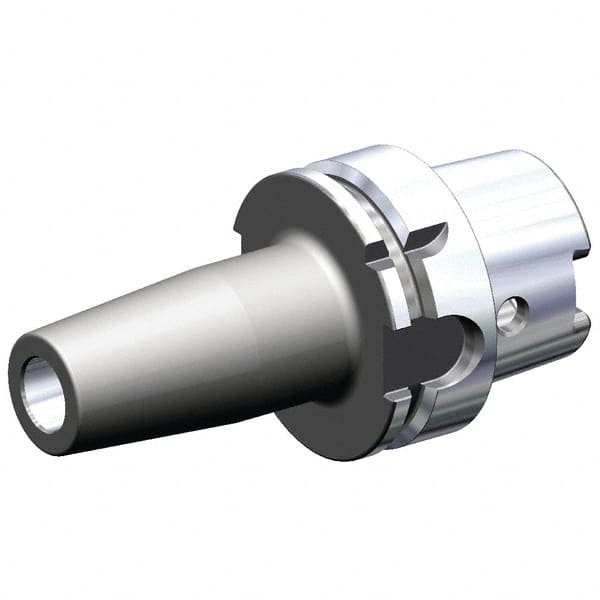

Kennametal - 63mm Shank Diam, 19.05mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 100mm Projection, 33mm Nose Diam, 42mm Clamping Depth, Through Coolant
Item #: 39719034
Brand: Kennametal
Model #: 6199586
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Shank Diameter (Decimal Inch) | 2.4803 |
| Taper Size | HSK63A |
| Shank Diameter (mm) | 63.00 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 19.05 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 33.00 |
| Nose Diameter (Decimal Inch) | 1.2992 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 42.00 |
| Clamping Depth (Decimal Inch) | 1.6535 |
| Overall Length (mm) | 132.00 |
| Overall Length (Decimal Inch) | 5.1969 |
