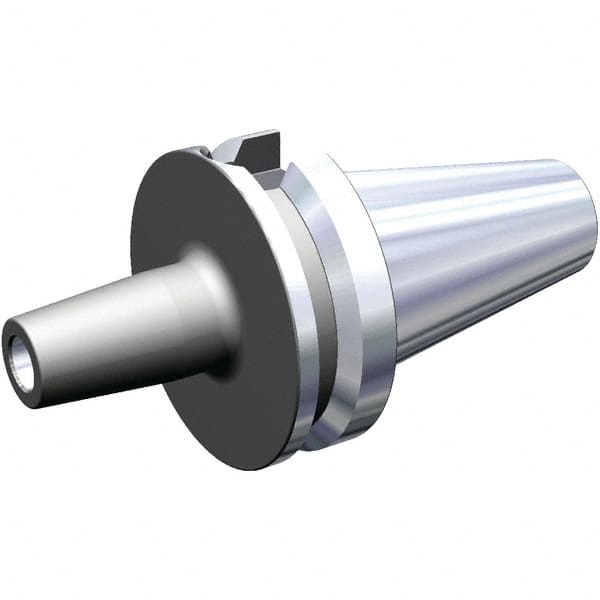

Kennametal - 69.85mm Shank Diam, 6mm Hole Diam, BT50 Taper Shank Shrink Fit Tool Holder & Adapter - 100mm Projection, 21mm Nose Diam, 26mm Clamping Depth, Through Coolant
Item #: 39718663
Brand: Kennametal
Model #: 6201430
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Shank Diameter (Decimal Inch) | 2.7500 |
| Taper Size | BT50 |
| Shank Diameter (mm) | 69.85 |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Hole Diameter (mm) | 6.00 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 21.00 |
| Nose Diameter (Decimal Inch) | 0.8268 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 26.00 |
| Clamping Depth (Decimal Inch) | 1.0236 |
| Overall Length (mm) | 201.80 |
| Overall Length (Decimal Inch) | 7.9449 |
