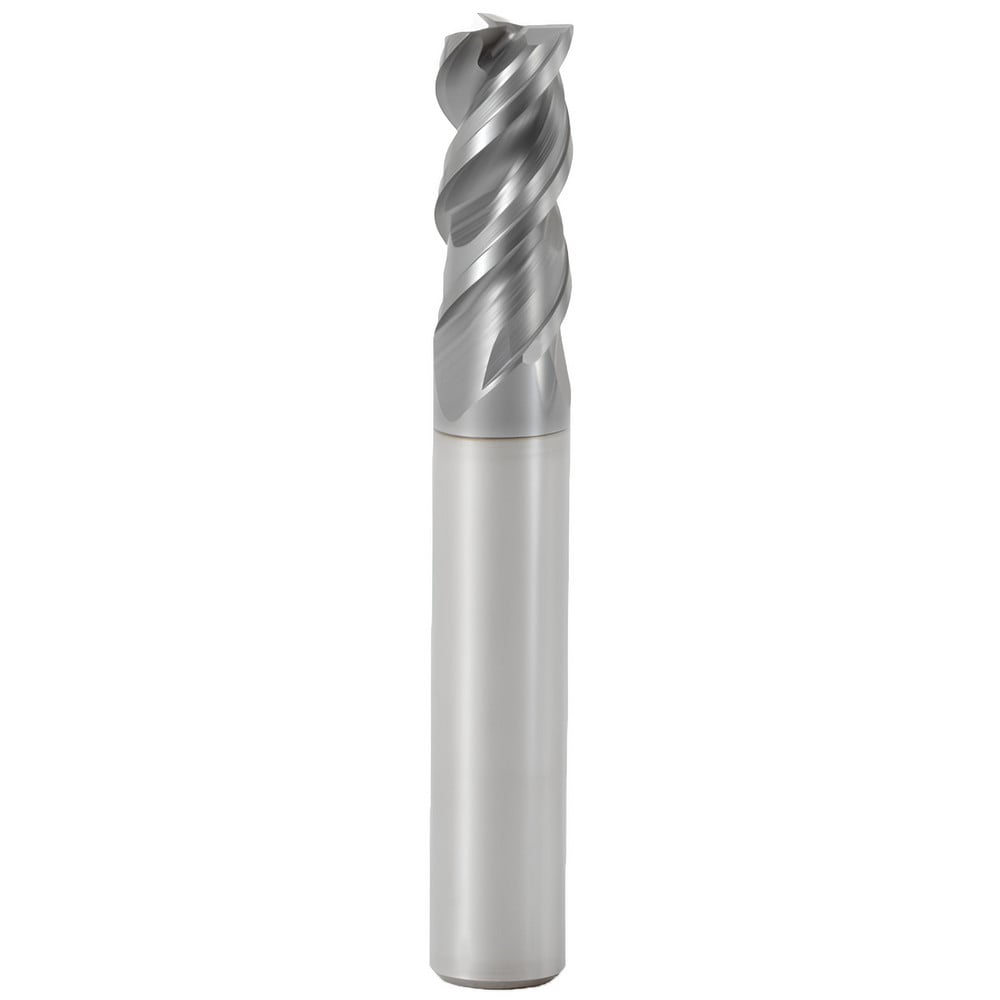

Corner Chamfer End Mill: 3/16" Dia, 3/8" LOC, 3 Flute, 0.0016" Chamfer Width, Solid Carbide
Item #: 91627869
Brand: Seco
Model #: 02712687
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1874 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | SIRON-A |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Chamfer Width (Decimal Inch) | 0.0016 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.0000 |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3752 |
| Length Type | Short |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1874 |
| Shank Diameter (Inch) | 3/16 |
| Reach Length (Decimal Inch) | 0.3752 |
| Reach Length (Inch) | 3/8 |
| Mill Diameter Tolerance | e7 |
| Shank Diameter Tolerance | h5 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M; N |
| Material Grade | Micrograin |
| Series | JS553 |
| Additional Information | Rampdown; Helical Interpolation; Plunging & Recessing; Shouldering; Slotting; Drill Mill |
| TIR Maximum (Decimal Inch) | 0.0004 |
| Coating Classification | PVD |
| Chamfer Length (Decimal Inch) | 0.0016 |
| Helix Style | High |
| Manufacturers Catalog Number | 5530187Z3.0-SIRON-A |
| Country of Origin | Netherlands |
