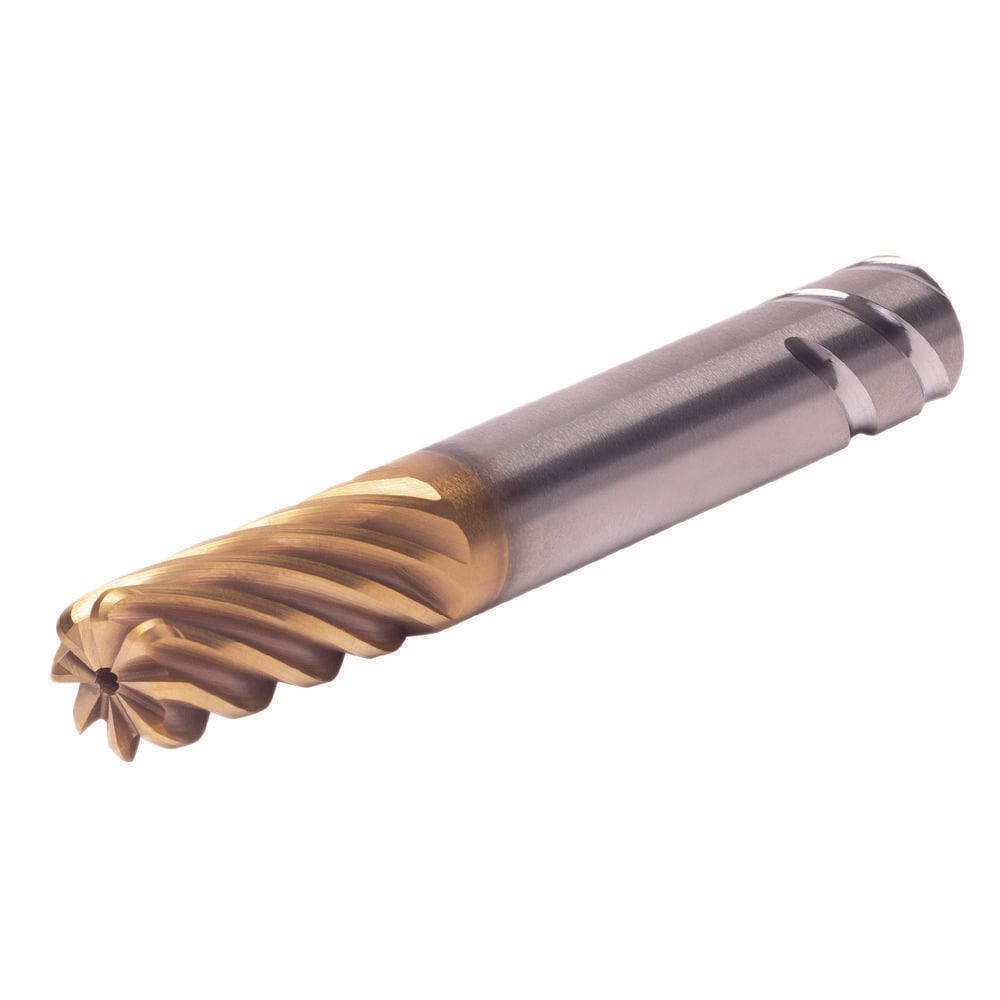

Corner Radius End Mill: 1" Dia, 1-1/4" LOC, 1.52 mm Radius, 8 Flute, Solid Carbide
Item #: 74090952
Brand: Kennametal
Model #: 7102541
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (mm) | 25.40 |
| Number Of Flutes | 8 |
| Length of Cut (mm) | 31.75 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlCrN |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.52 |
| Overall Length (mm) | 101.60 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Safe-Lock |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| UNSPSC Code | 27112803 |
| Series | HARVI IV |
| Manufacturers Catalog Number | HA4R8RA1000S125SLR060I |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (mm) | 25.40 |
| Number Of Flutes | 8 |
| Length of Cut (mm) | 31.75 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlCrN |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.52 |
| Overall Length (mm) | 101.60 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Safe-Lock |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| UNSPSC Code | 27112803 |
| Series | HARVI IV |
| Manufacturers Catalog Number | HA4R8RA1000S125SLR060I |
| MSC Part # | 74090952 |
| Mfr Part # | 7102541 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
