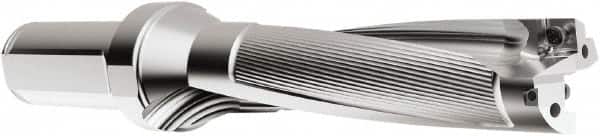

Seco - 108mm Max Drill Depth, 4xD, 27mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Straight Shank
Item #: 39343330
Brand: Seco
Model #: 03080355
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 27.00 |
| Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Depth (mm) | 108.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 27.52 |
| Overall Length/Projection (mm) | 198.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 070308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 113.00 |
| Body Length (mm) | 138.00 |
| Shank Length (mm) | 60.00 |
| Collar Diameter (mm) | 42.00 |
| Series | PerfoMAX |
