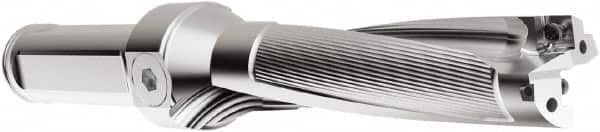

Seco - 4-1/4" Max Drill Depth, 4xD, 26.97mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 39342886
Brand: Seco
Model #: 03080306
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 26.97 |
| Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Depth (Inch) | 4-1/4 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 27.49 |
| Overall Length/Projection (mm) | 212.80 |
| Insert Compatibility (Outside or Peripheral) | SCGX 070308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 112.95 |
| Body Length (mm) | 142.95 |
| Shank Length (Decimal Inch) | 2.7500 |
| Collar Diameter (mm) | 42.00 |
| Series | PerfoMAX |
