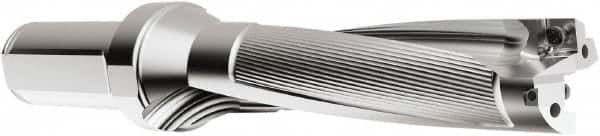

Seco - 66.55mm Max Drill Depth, 4xD, 16.66mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 39342555
Brand: Seco
Model #: 03080283
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 16.66 |
| Drill Diameter (Decimal Inch) | 0.6560 |
| Maximum Drill Depth (mm) | 66.55 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 17.58 |
| Overall Length/Projection (mm) | 153.70 |
| Insert Compatibility (Outside or Peripheral) | SCGX 050204 |
| Insert Compatibility | SPGX0502.. |
| Flute Length (mm) | 71.55 |
| Body Length (mm) | 96.55 |
| Shank Length (Decimal Inch) | 2.2500 |
| Collar Diameter (mm) | 35.00 |
| Series | PerfoMAX |
