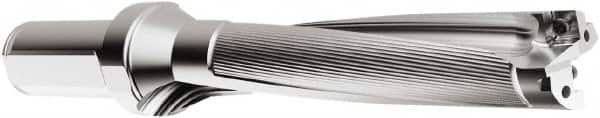

Seco - 95mm Max Drill Depth, 5xD, 19mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 39331236
Brand: Seco
Model #: 03079580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD525 |
| Drill Diameter (mm) | 19.00 |
| Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Depth (mm) | 95.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 19.84 |
| Overall Length/Projection (mm) | 181.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 050204 |
| Insert Compatibility | SPGX0602.. |
| Flute Length (mm) | 100.00 |
| Body Length (mm) | 125.00 |
| Shank Length (mm) | 56.00 |
| Collar Diameter (mm) | 35.00 |
| Series | PerfoMAX |
