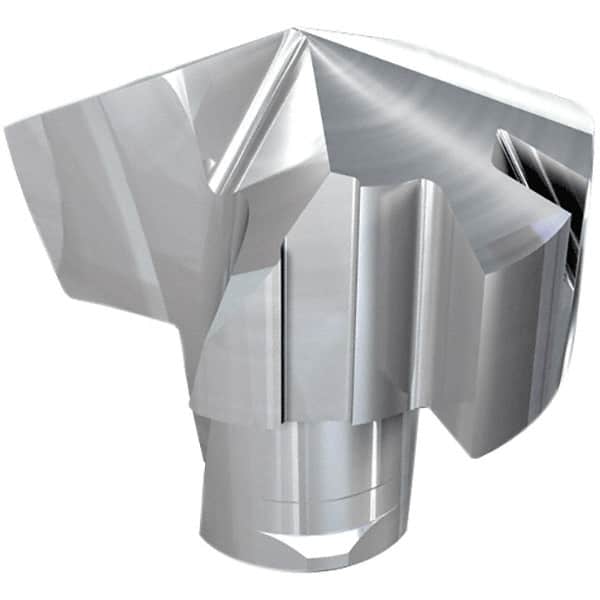

Iscar - Series ICN, 13.5mm Diam Grade IC08 Replaceable Drill Tip - Carbide, Uncoated, 13 Seat Size
Item #: 39317425
Brand: Iscar
Model #: 5508419
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Diameter (mm) | 13.50 |
| Diameter (Decimal Inch) | 0.5310 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| Series | ICN |
| Coating | Uncoated |
| Insert Seat Size | 13 |
| Through Coolant | No |
| Height (mm) | 7.60 |
| Height (Decimal Inch) | 0.2990 |
