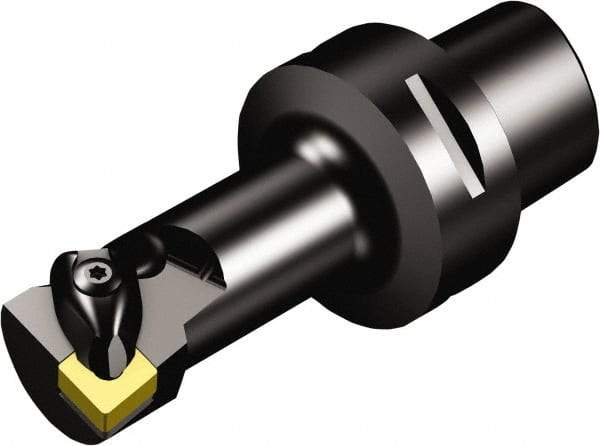

Sandvik Coromant - Left Hand Cut, Size C5, CNMG 432 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 17mm Ctr to Cutting Edge, 90mm Head Length, Through Coolant, Series T-Max P
Item #: 39288972
Brand: Sandvik Coromant
Model #: 5728020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 90.00 |
| Head Length/Projection (Decimal Inch) | 3.5433 |
| Insert Style | CNMG 432 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Center to Cutting Height (mm) | 66.00 |
| Center to Cutting Height (Decimal Inch) | 2.5984 |
| Complete Insert Compatibility | CNMG 12 04 08 |
