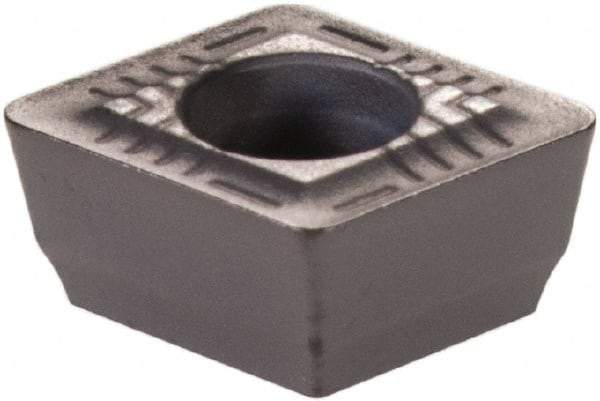

Hertel - HPMT063306 GP Grade HP130D Carbide Indexable Drill Insert - TiAlN/AlCrN Finish, Diamond, 0.2362" Inscribed Circle
Item #: 39270624
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HPMT |
| Insert Size | 063306 |
| Material | Carbide |
| Manufacturer's Grade | HP130D |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Inch) | 0.2362 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Thickness (mm) | 3.30 |
| Thickness (Inch) | 0.1299 |
| Thickness (Decimal Inch) | 0.1299 |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Inch) | 0.0236 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Shape | Diamond |
| Width (Decimal Inch) | 0.2362 |
| Width (mm) | 6.00 |
| Length (Decimal Inch) | 0.2362 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Inch) | 0.0984 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 11 |
| Included Angle | 80 |
| Coating | TiAlN/AlCrN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | GP |
