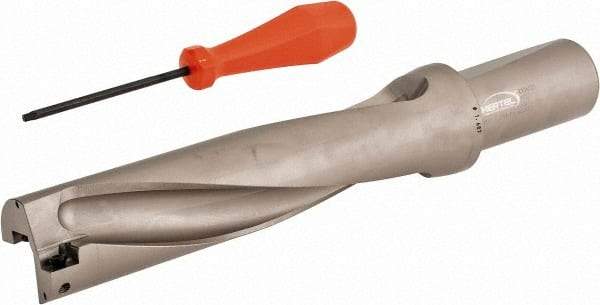

Hertel - 6-3/4" Max Drill Depth, 4xD, 1-11/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 39270459
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 42.86 |
| Drill Diameter (Inch) | 1-11/16 |
| Drill Diameter (Decimal Inch) | 1.6875 |
| Maximum Drill Depth (Inch) | 6-3/4 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.7380 |
| Overall Length/Projection (mm) | 206.50 |
| Overall Length/Projection (Decimal Inch) | 8.1300 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT125812-GP |
| Flute Length (mm) | 176.50 |
| Flute Length (Decimal Inch) | 6.9490 |
| Body Length (Decimal Inch) | 11.1300 |
| Body Length (mm) | 282.70 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (mm) | 49.50 |
| Collar Diameter (Decimal Inch) | 1.9490 |
| Radius (Decimal Inch) | 0.0472 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
