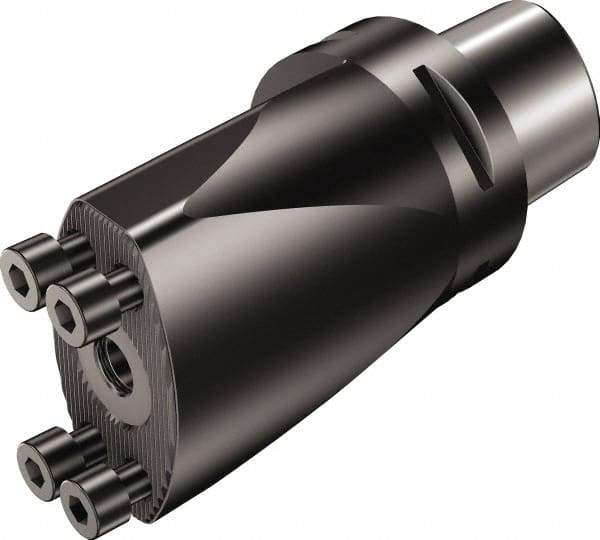

Sandvik Coromant - 73mm Max Drill Depth, 4xD, 17.5mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 39191176
Brand: Sandvik Coromant
Model #: 5765241
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 17.50 |
| Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Depth (mm) | 73.00 |
| Maximum Drill Depth (Decimal Inch) | 2.8740 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Diameter (mm) | 18.50 |
| Overall Length/Projection (mm) | 133.00 |
| Overall Length/Projection (Decimal Inch) | 5.2362 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 70.00 |
| Flute Length (Decimal Inch) | 2.7559 |
| Body Length (Decimal Inch) | 4.2780 |
| Body Length (mm) | 108.66 |
| Shank Length (mm) | 24.34 |
| Shank Length (Decimal Inch) | 0.9583 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.50 |
