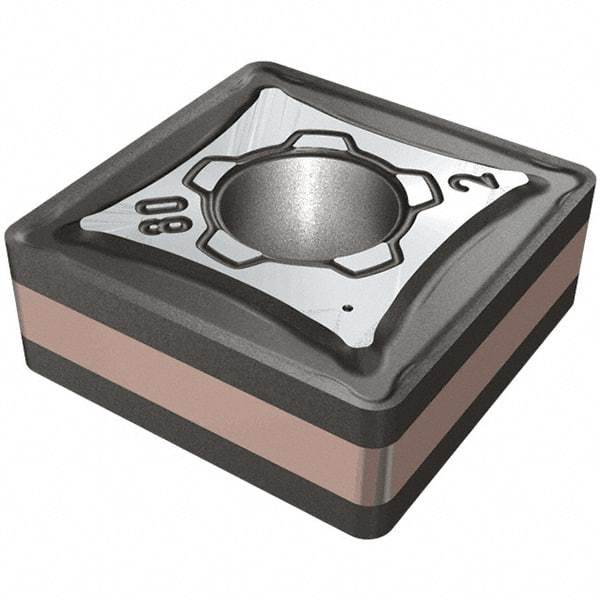

Iscar - SNMG322 M3M Grade IC6015 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 9.52mm Inscr Circle, 3.18mm Thick, 0.8mm Corner Radius
Item #: 39056031
Brand: Iscar
Model #: 5560558
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC6015 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M3M |
| ISO Number | SNMG 322-M3M |
| Coating Process | CVD |
| Manufacturers Catalog Number | 5560558 |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | None |
| Included Angle | 90 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Multi Use Application | Turning |
| Shape | Square |
