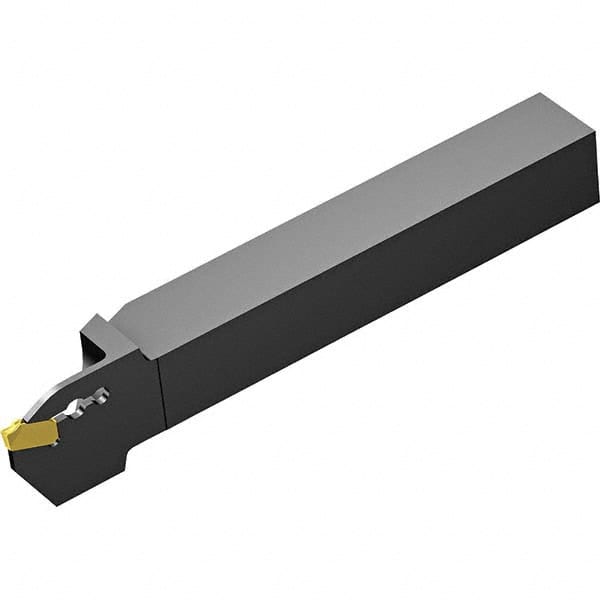

13mm Max Depth, 0 to 1″ Width, External Right Hand Nonface Grooving Toolholder 1″ OAL, 20 x 20mm Shank, Uses QD-NC Inserts, QD-RF Toolholder, Series CoroCut QD
Item #: 38840047
Brand: Sandvik Coromant
Model #: 6427727
Product Specifications
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Insert Seat Size | C |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 13.00 |
| Toolholder Style | QD-RF |
| Maximum Groove Width (Decimal Inch) | 1.0000 |
| Insert Compatibility | QD-NC |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Series | Coro Cut QD |
| Overall Length (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Head Height (mm) | 20.00 |
| Coolant Through | No |
