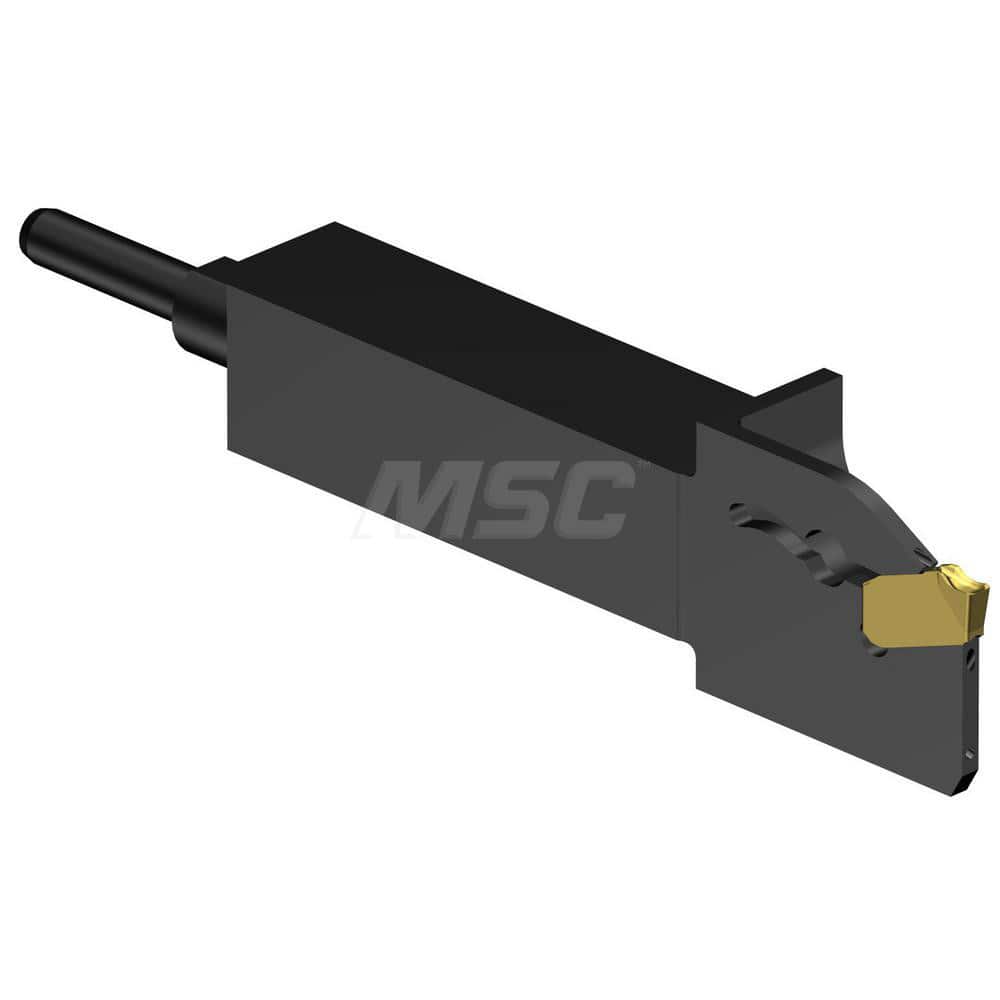

13mm Max Depth, 0 to 1″ Width, External Left Hand Nonface Grooving Toolholder 1″ OAL, 12 x 12mm Shank, Uses QD-NE Inserts, QS-QD Toolholder, Through Coolant, Series CoroCut QD
Item #: 38839825
Brand: Sandvik Coromant
Model #: 6921655
Product Specifications
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Insert Seat Size | E |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 13.00 |
| Toolholder Style | QS-QD |
| Maximum Groove Width (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | QD-NE |
| Compatible Insert Size Code | N123F2 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Series | Coro Cut QD |
| Overall Length (Decimal Inch) | 1.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Maximum Overhang (Inch) | 0.9842 |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Head Height (mm) | 12.00 |
| Coolant Through | Yes |
