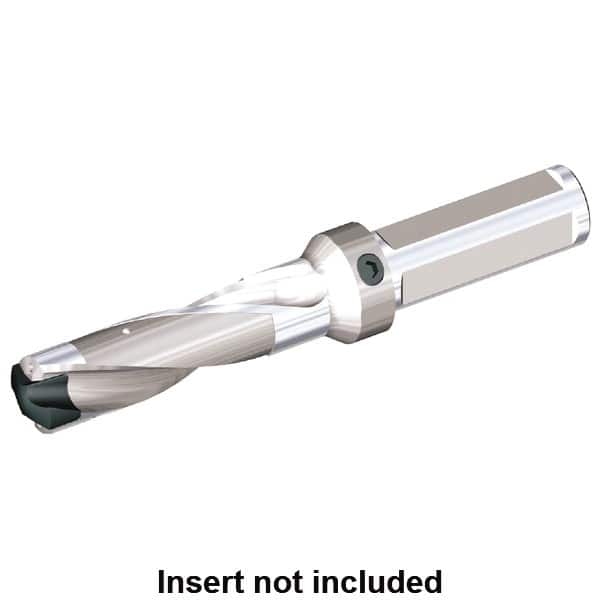

Replaceable Tip Drill: 33.73 to 36 mm Drill Dia, 168.7 mm Max Depth, Straight-Cylindrical Shank Uses KSEM3373HPGM Inserts, Seat Size 9, 317.55 mm OAL, Through Coolant
Item #: 38646337
Brand: Kennametal
Model #: 6123757
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.2380 |
| Minimum Drill Diameter (mm) | 33.73 |
| Maximum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.4170 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 168.70 |
| Shank Type | Straight-Cylindrical |
| Insert Style | KSEM3373HPGM |
| Shank Diameter (Inch) | 1-1/2 |
| Insert Seat Size | 9 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |
| Compatible Insert Style | KSEM3373HPGM |
| Overall Length (mm) | 317.55 |
| Series | KSEM |
| Toolholder Style | KSEM |
| Flute Length (mm) | 207.50 |
| Body Length | 222.30 |
| Shank Length (Decimal Inch) | 3.7500 |
| Coolant Hole Diameter (mm) | 6.00 |
| Tip Length (mm) | 5.90 |
| Coolant Through | Yes |
