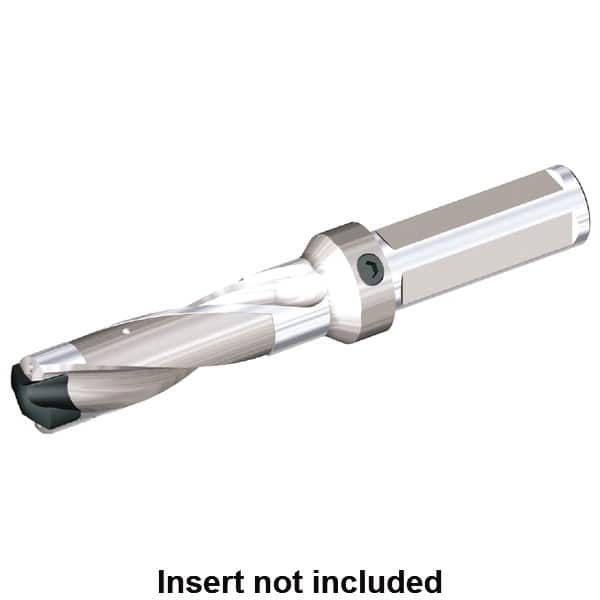

Replaceable Tip Drill: 35.72 to 36 mm Drill Dia, 178.6 mm Max Depth, Straight-Cylindrical Shank Uses KSEM3572HPGM Inserts, Seat Size 9, 330.15 mm OAL, Through Coolant
Item #: 38646303
Brand: Kennametal
Model #: 6123760
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.4063 |
| Minimum Drill Diameter (mm) | 35.72 |
| Maximum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.4170 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 178.60 |
| Shank Type | Straight-Cylindrical |
| Insert Style | KSEM3572HPGM |
| Shank Diameter (Inch) | 1-1/2 |
| Insert Seat Size | 9 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |
| Compatible Insert Style | KSEM3572HPGM |
| Overall Length (mm) | 330.15 |
| Series | KSEM |
| Toolholder Style | KSEM |
| Flute Length (mm) | 220.30 |
| Body Length | 234.90 |
| Shank Length (Decimal Inch) | 3.7500 |
| Coolant Hole Diameter (mm) | 6.00 |
| Tip Length (Decimal Inch) | 0.2500 |
| Coolant Through | Yes |
