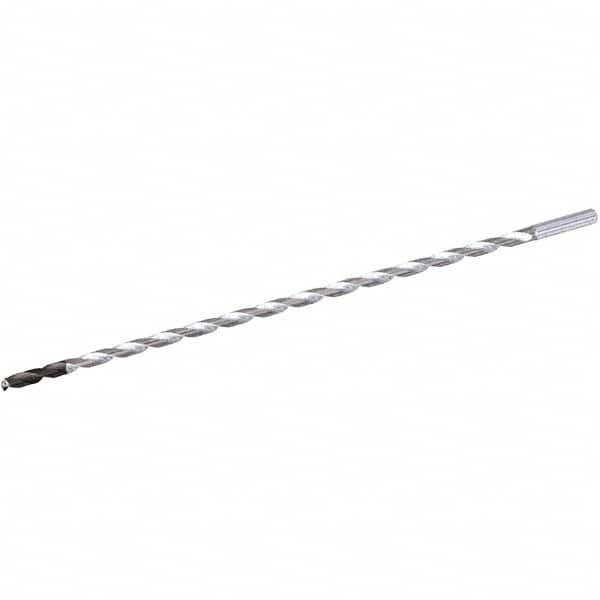

Extra Length Drill Bit: 0.3543″ Dia, 135 °, Solid Carbide Uncoated, 14.9606″ Flute Length, 16.7323″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series B275SGL
Item #: 38600904
Brand: Kennametal
Model #: 6351454
Product Specifications
| Drill Bit Size (mm) | 9.00 |
| Overall Length (mm) | 425.00 |
| Flute Length (mm) | 380.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B275SGL |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.3543 |
| Drill Point Length (mm) | 1.53 |
| Drill Point Length (Decimal Inch) | 0.0602 |
| Overall Length (Decimal Inch) | 16.7323 |
| Shank Diameter (mm) | 9.00 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.00 |
| Flute Length (Decimal Inch) | 14.9606 |
| Flute By Diameter Ratio | 40xD |
| Maximum Drilling Depth (Decimal Inch) | 14.1732 |
| Maximum Drilling Depth (mm) | 360.00 |
| Material Grade | KCMS20 |
