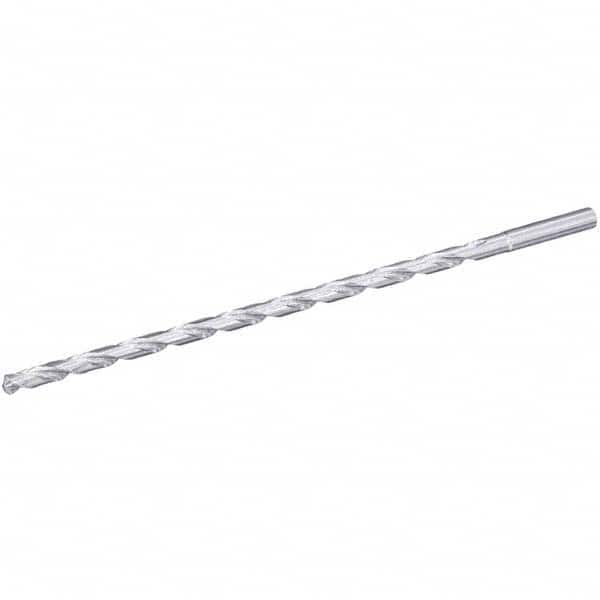

Extra Length Drill Bit: 0.1181″ Dia, 135 °, Solid Carbide Uncoated, 3.2283″ Flute Length, 4.5669″ OAL, Straight-Cylindrical Shank, Series B273SGL
Item #: 38590329
Brand: Kennametal
Model #: 6351192
Product Specifications
| Drill Bit Size (mm) | 3.00 |
| Overall Length (mm) | 116.00 |
| Flute Length (mm) | 82.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | B273SGL |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Drill Point Length (mm) | 0.51 |
| Drill Point Length (Decimal Inch) | 0.0201 |
| Overall Length (Decimal Inch) | 4.5669 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.1811 |
| Shank Length (mm) | 30.00 |
| Flute Length (Decimal Inch) | 3.2283 |
| Flute By Diameter Ratio | 25xD |
| Maximum Drilling Depth (Decimal Inch) | 2.9528 |
| Maximum Drilling Depth (mm) | 75.00 |
| Material Grade | KCMS20 |
